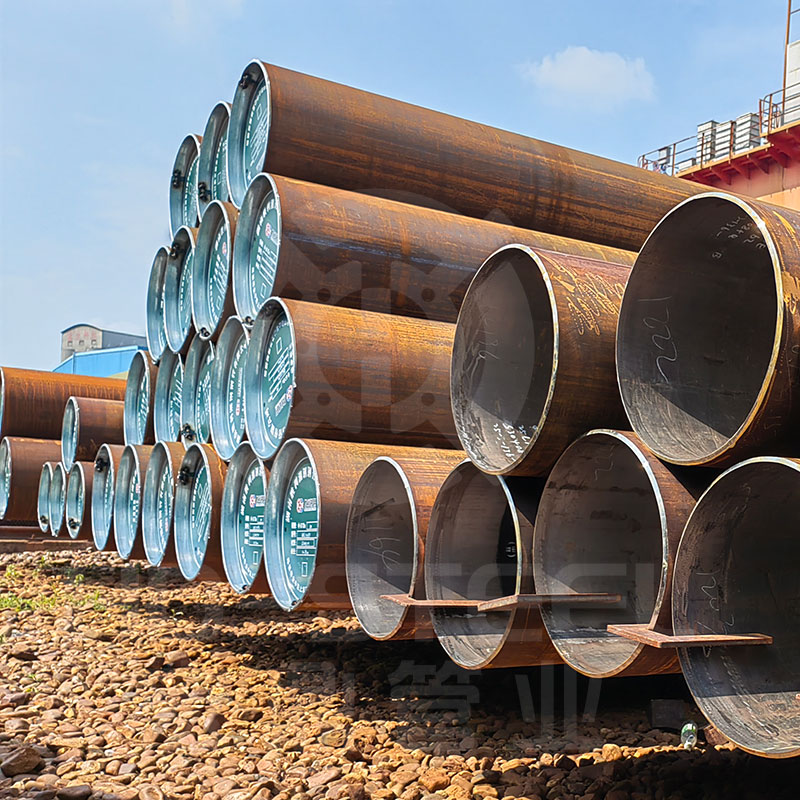

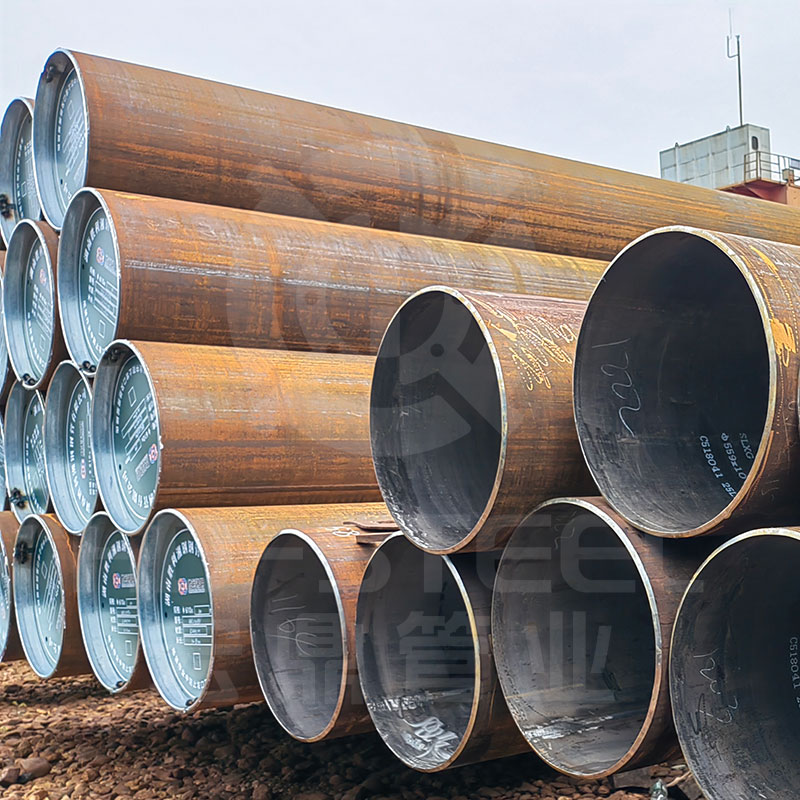

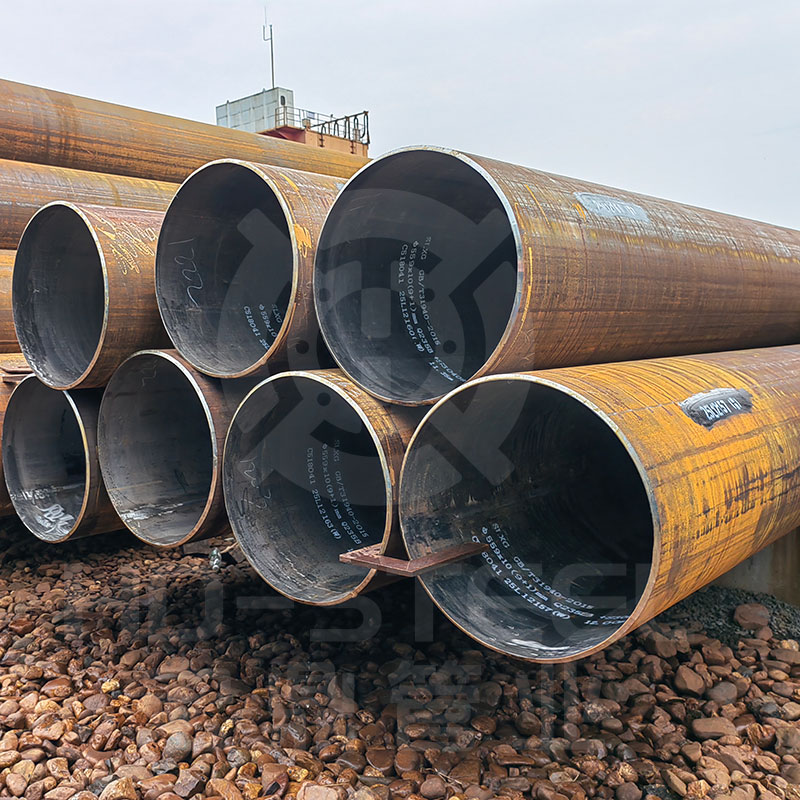

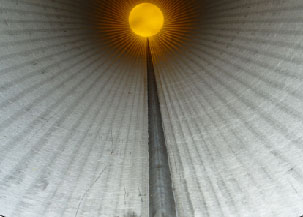

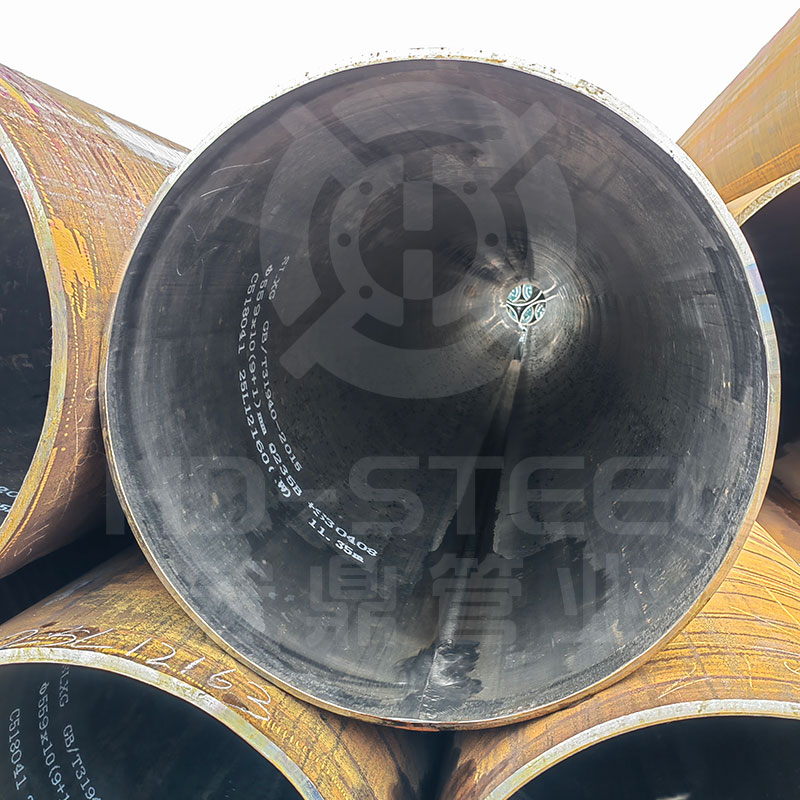

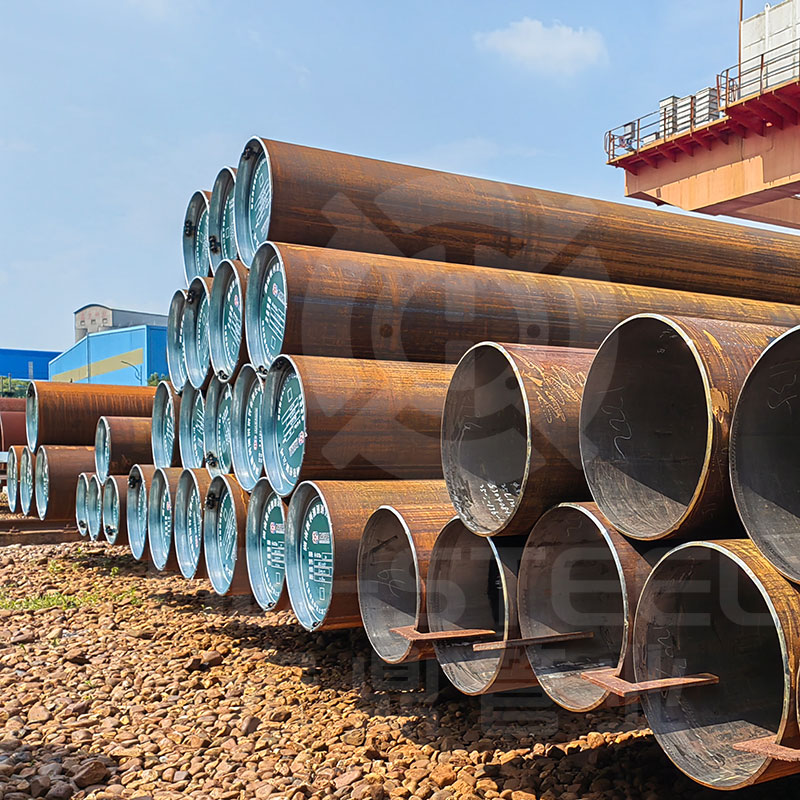

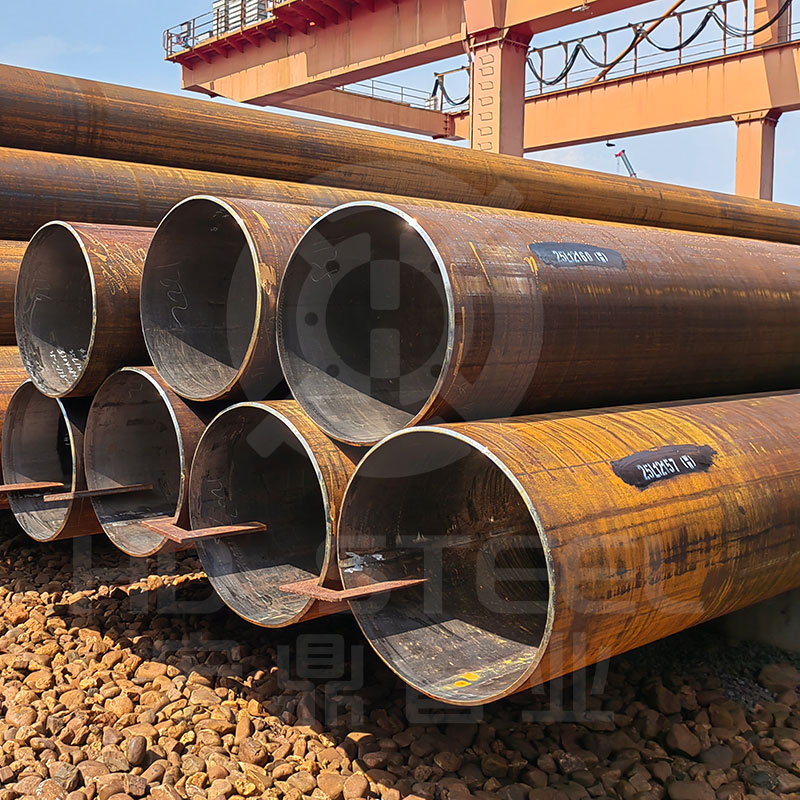

HD-STEEL Bimetallic composite pipe is a composite steel pipe with two different metals formed by adding corrosion-resistant alloy layer on the inner wall of the steel pipe on the basis of traditional carbon steel pipe.The inner wall of the pipe is a corrosion-resistant alloy(CRA)layer and the outer wall is a high-quality pipeline steel/carbon steel structure, which gives the steel pipe the ability to resist internal corrosion and external pressure,while also being more hygienic and environmentally friendly.

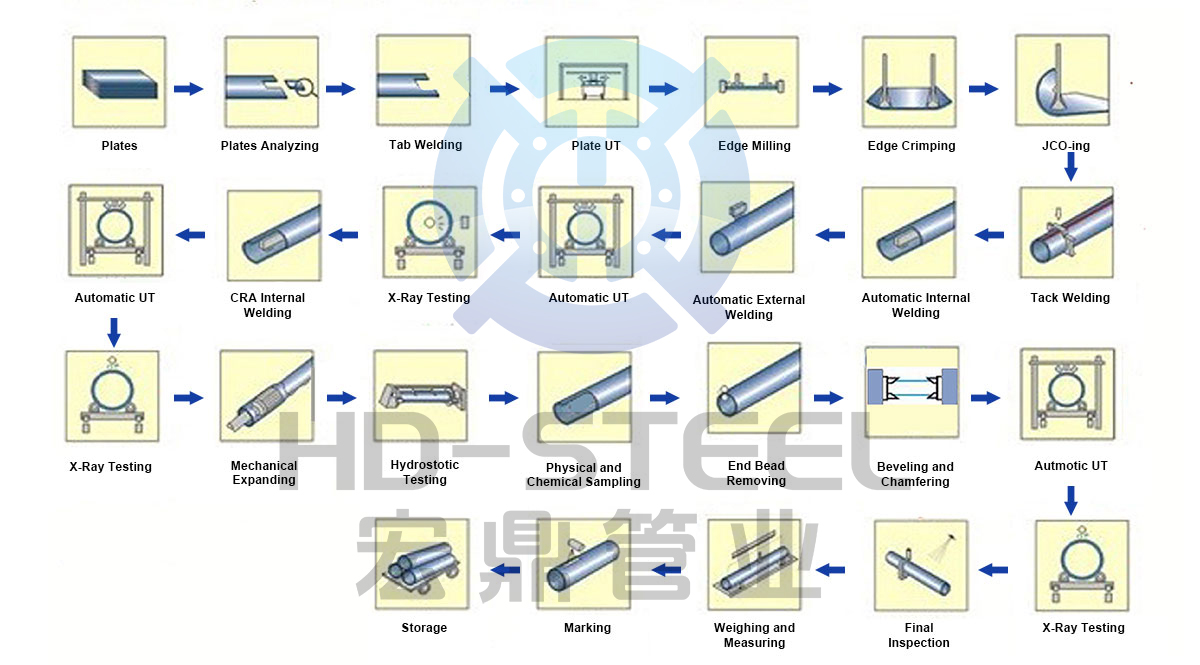

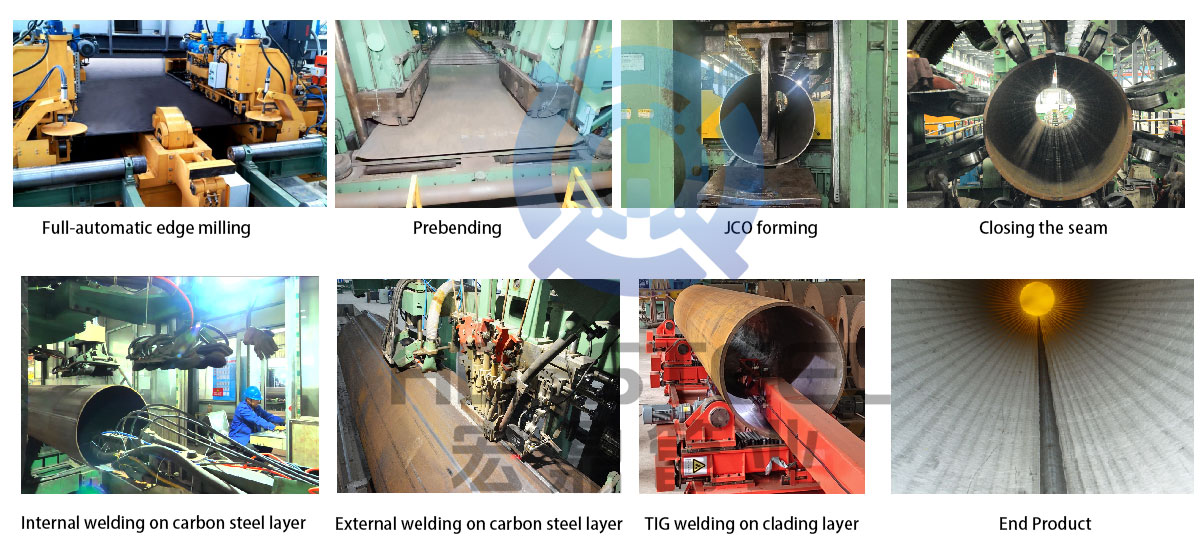

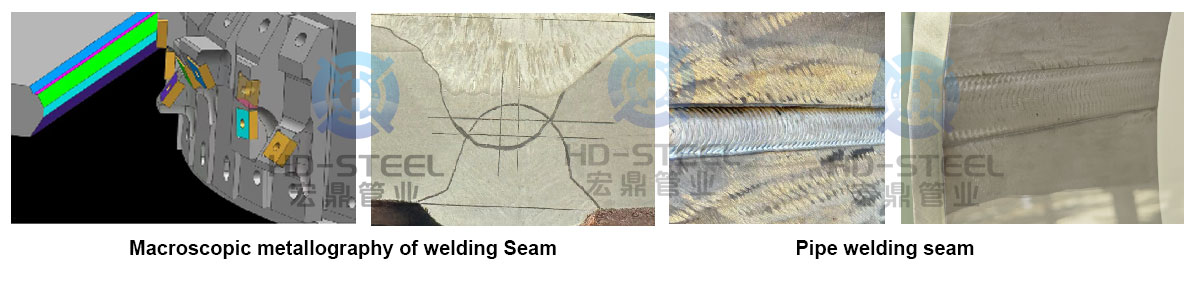

Produced from bimetallic clad plates(metallurgical rolled by Xiangtan lron & Steel and other mills)via JCOE straight-seam forming plus hot-wire TlG welding.
| Diameter range | φ508-φ1422mm; |
| wall thickness | 7-60mm |

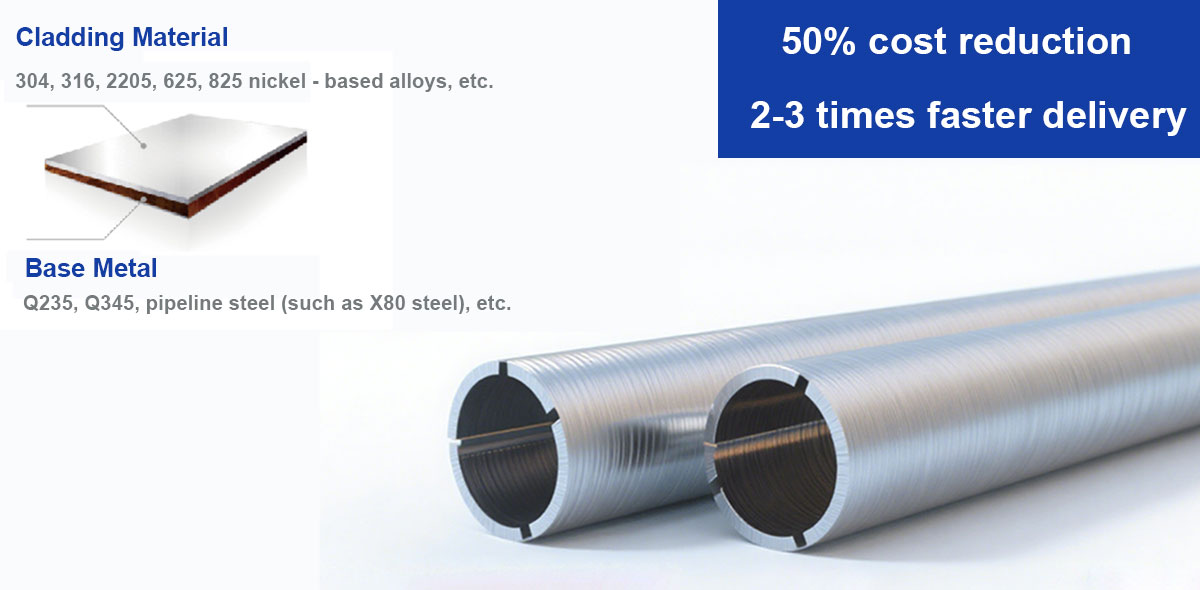

| Cladding materials | 2205,304,316,and nickel-based alloys 625，825, etc. |
Bimetallic composite pipes manufactured through pipe welding and forming processes using metallurgical rolled composite bimetallic plates as raw materials are currently one of the composite pipes with the highest bonding strength.
They feature high production efficiency, short delivery time, and relatively low production costs. The pipes have good shape, which is beneficial to the quality and efficiency of on-site construction butt joints, and they are easy to cut and use. Additionally, they boast a long service life and low comprehensive cost.
| Diameter range | φ508-φ1422mm; |
| wall thickness | 7-60mm |
| Cladding materials | 2205,304,316,and nickel-based alloys 625，825, etc. |
API Spec 5LD
DNV-OS-F101
DNVGL-ST-F101
GB/T 37701
SY/T 6623
