In industrial piping projects, standard products are not always enough. Different projects may require specific dimensions, materials, pressure ratings, connection types and quantities.
Recently, HD-STEEL Group completed a supply project involving stainless steel flanges and pipe fittings in SS316L, PN16, covering multiple flange types and large-diameter sizes up to DN800. This project demonstrates our ability to supply large diameter stainless steel flanges and project-specific pipe fittings for industrial piping applications.
The order included:
| Product | Size Range | Material | Pressure Rating |
|---|---|---|---|
| Blind Flange | DN150–DN500 | SS316L | PN16 |
| Slip-On Flange | DN80–DN800 | SS316L | PN16 |
| Socket Weld Flange | DN40 | SS316L | PN16 |
| 45° LR Elbow | DN150–DN300 | SS316L | PN16 |
| 90° LR Elbow | DN80–DN500 | SS316L | PN16 |

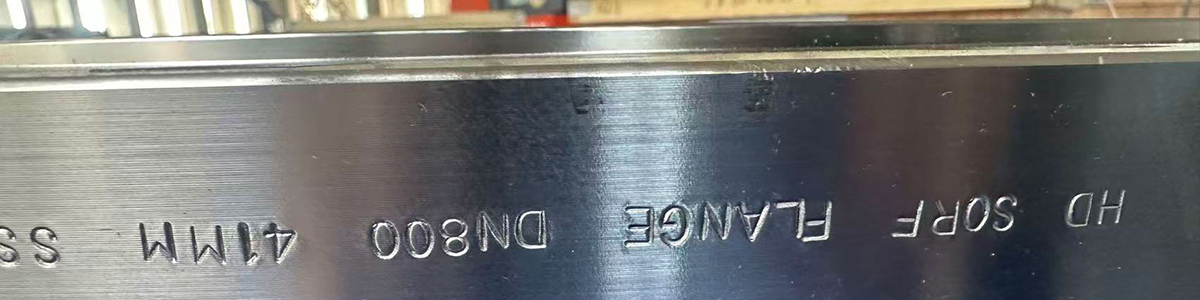

The largest item in this project was the DN800 Slip-On Flange, demonstrating our capability in manufacturing and supplying large-diameter stainless steel flange products. DN800 is not our upper limit. We offer custom flanges and pipe fittings in larger sizes, with flanges up to 96 inches (approx. DN2400).
Large-diameter flanges require careful control of dimensions, bolt-hole positioning, facing, thickness and overall geometry. For project-specific orders, HD-STEEL Group can manufacture and supply stainless steel flanges according to the customer's requirement. Our production capability covers a wide range of flange configurations, including Blind Flanges, Slip-On Flanges, Socket Weld Flanges, Weld Neck Flanges and other customized flange designs.
For large-diameter projects, applicable dimensional standards shall be confirmed according to the size and project specifications. ASME B16.5 governs pipe flanges from NPS 1/2 up to NPS 24, and ASME B16.47 covers large-diameter steel flanges from NPS 26 to NPS 60. Beyond these standard scopes, we are capable of custom manufacturing flanges up to NPS 96 (approx. DN2400).

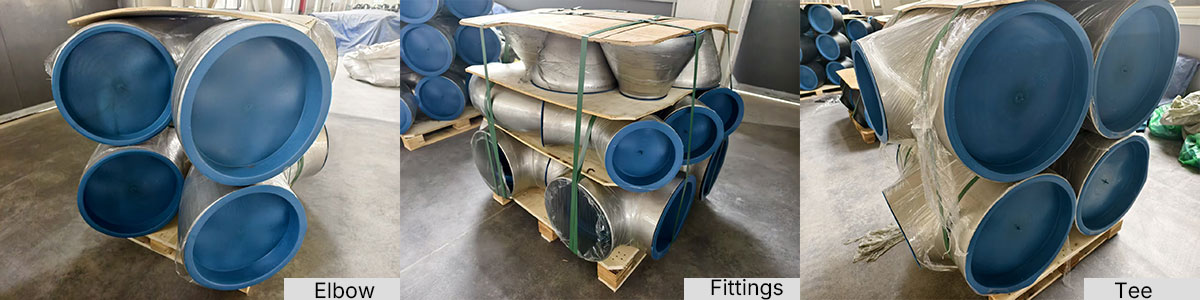

In this project, we provided pipe fittings including 45° and 90° long-radius elbows in SS316L, with sizes up to DN500. For larger requirements exceeding standard ASME B16.9 range, we produce custom plate-fabricated pipe fittings and matching flanges up to NPS 96 (approx. DN2400), available with NDT, heat treatment and hydrotesting as required.
One of our core strengths is delivering non-standard, project-tailored piping solutions.
Rather than only offering standard off-the-shelf sizes, we can evaluate your drawings, specifications and BOQs, then fabricate products strictly in accordance with project requirements. This positions HD-STEEL Group as an ideal partner for EPC contractors, distributors, engineering firms and industrial procurement teams seeking a single source for a full range of piping products. On this project, multiple items were supplied under unified material and pressure class requirements, enabling our customer to consolidate procurement through one vendor. Our one-stop supply streamlines customers’ sourcing workflow, including technical alignment, third-party inspection and shipment coordination.
If your project requires large-diameter stainless steel flanges, custom pipe fittings or project-specific piping components, please share your drawings, BOQ or technical specifications with us. Our engineering and sales team will assess your requirements and propose a feasible manufacturing and quotation package. Contact HD-STEEL Group for your next piping project.
